Mars DomeTM

Red Mars DomeTM

  • LED Dome Lights
  • High-Flux LEDs
  • 5 1/2" and 6 3/4" Diameters
  • Same Mounting Hole Patterns as Most Popular Dome Lights
  • Either Two Levels of Warm White Light or
  • Red or Warm White Light
  • Chrome Colored Shell
  • Multi-Voltage: 12VDC or 24VDC

Very Popular  5 1/2" and 6 3/4"

Surface Mounted LED Dome Lights

Descriptions:



The Mars Dome and Red Mars Dome are classic style, general purpose, surface-mounted LED light fixtures with your choice of dual level white lights or red / white light for night use, with the added benefit of high-flux LED technology. These lights are fabricated from the highest quality components to assure long life and trouble-free functioning. Their patented internal circuitry provides consistent brightness and makes them immune to life-shortening voltage fluctuations.



Product Features:



An On/Off/On rocker switch to select two levels of warm white light or between warm white and red light.

Equivalent to a 40W incandescent dome light, bright enough for general use.

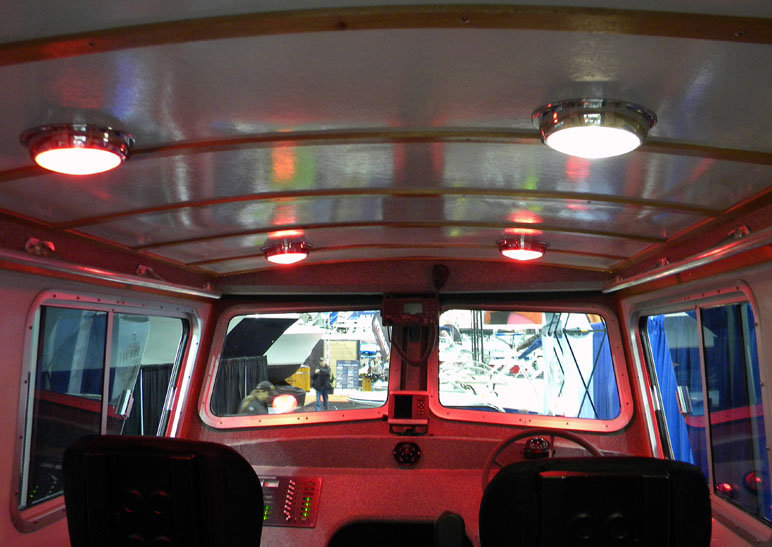

Ideal for map reading lights, emergency lights, or night illumination.

Classic styling.

Ample heat sinking to the LEDs to ensure long life operation.

Multi-voltage 12VDC or 24VDC

Instant on, no warm-up of bulb needed.

Long service life.

Not hot, warm to the touch.

Shockproof, ultra-rugged with no filament to burn out or break.

5 1/2"

White

PN: 8001177



5 1/2"

Red/White

PN: 8001184



6 3/4"

White

PN: 8001528



6 3/4" Red/White

PN: 8001504



Specifications:

  • Input Voltage: 10-30 VDC
  • Current Draw: ~0.25A @ 12V (On High)  ~0.13A @ 12V (On Low)
  •                                  ~0.13A @ 24V (On High)  ~0.06A @ 24V (On Low)
  • Light Output: ~90 lumens
  • Color Temperature: ~3200 K
  • Lens Material: Polycarbonate
  • Fixture Material:  Chrome plated ABS plastic
  • Fixture Dimensions: 5 1/2" and 6 3/4" overall diameter
  • Mechanical Connection: Three mounting holes
  • Electrical Connection: Polarized 4" pigtail cable (20AWG 300V 80C UL1007 rated multi-stranded copper conductors)
  • Weight: ~ 12 oz
5 1/2"

1:1 Drill Template



6 3/4"

1:1 Drill Template

Mars LED Disk.

A Dome Light LED Conversion Kit is also available.
