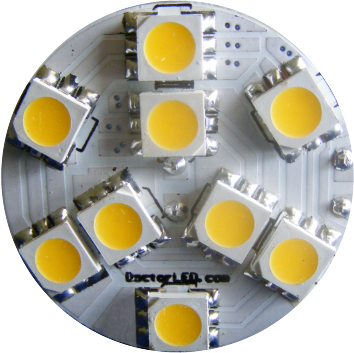

G4 Bi-Pin LED Disks
  • Perfect LED Replacement for your "Third Degree Burn" Bi-Pin Halogen G4 Bulb
  • 12V: Available in Warm White, Red  and Blue
  • 24V: Available in Warm White and Blue
  • Zero Radio Frequency Emission
  • 0.13A @ 12V or 0.07A @ 24V
  • Both Axial (center) and Radial (side) Pins Provided
  • High-quality Marine Environment LED Disks
  • Designed in the USA



These G4 MR11 LED disks come in several models (12V or 24V) and are ideal for replacing your existing incandescent or halogen bi-pin bulbs.  Unique, cutting edge, internal circuitry and the highest quality components make Dr. LED's the longest lasting, most energy efficient LED products on the market.  These high-quality bulbs produce warm white or blue or red lights, and are the perfect way to reduce energy consumption on your boat. They have a long service life, are shock proof, and UV, lead and mercury-free.  These bulbs are ideal for cockpit lights; map reading lights, emergency lights, etc.  They produce a flood-type beam and work well in many light fixtures.


Both axial (center) and radial (side) connection pins are provided.  Just shear off the pins that are not needed.

  • 0.13A @ 12V or 0.07A @ 24V

  • 5.5mm (0.2") thick, 30mm (1.2") dia.

12V Warm White


PN: 9000081

12V Blue


PN: 9000364

12V Red


PN: 9000098

24V Warm White


PN: 9000340

24V Blue


PN: 9000418
